This research was supported by the Austrian Science Fund (FWF): Grants P25816-N15 and ORD 53-VO. Joint work with Peter Palfrader. Click on an image to get a larger one.
|

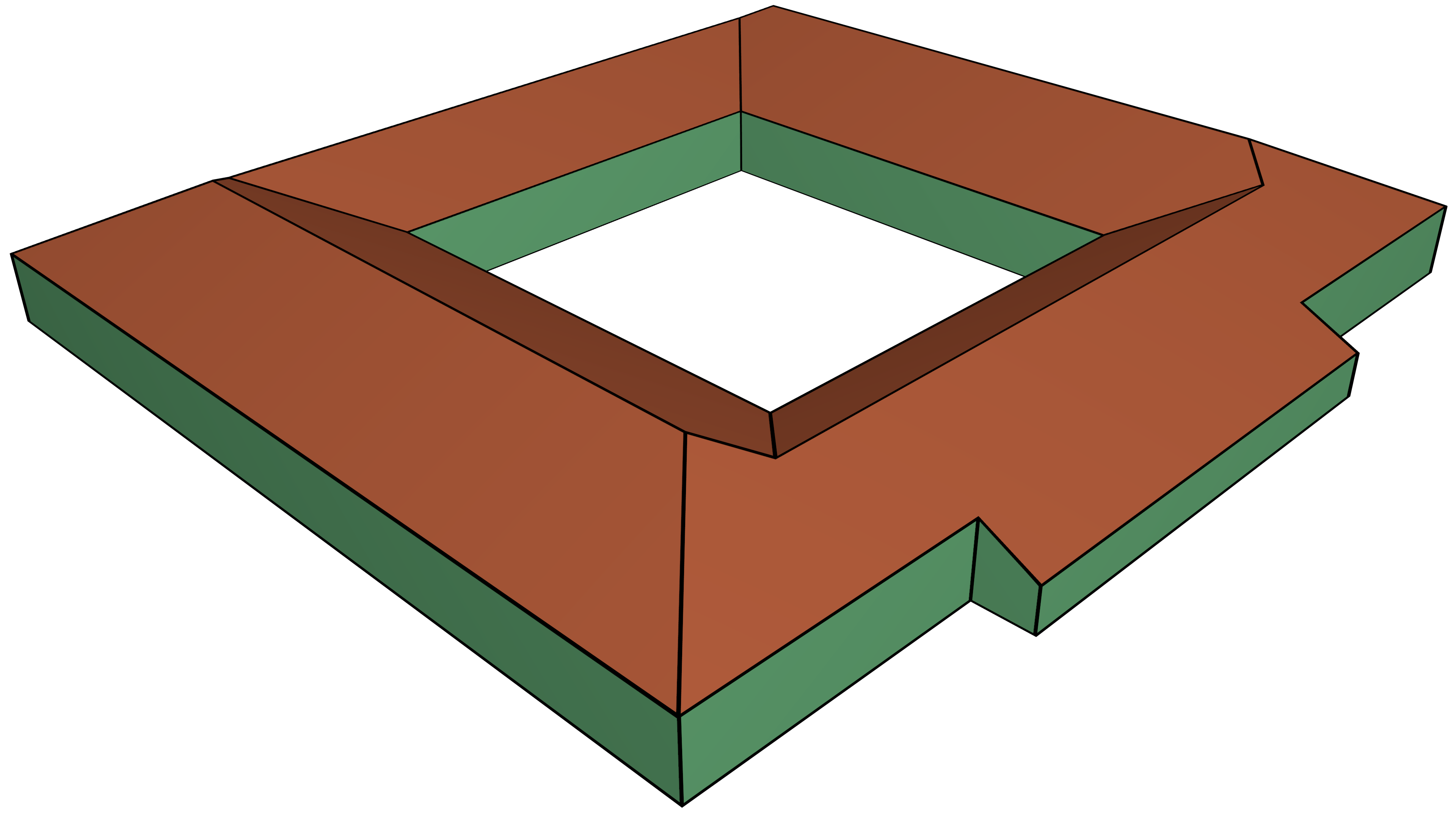

A roof for a traditional Austrian farm house. The roof was constructed based on an additively weighted straight skeleton of the (exterior) footprint of the house. | |||
|

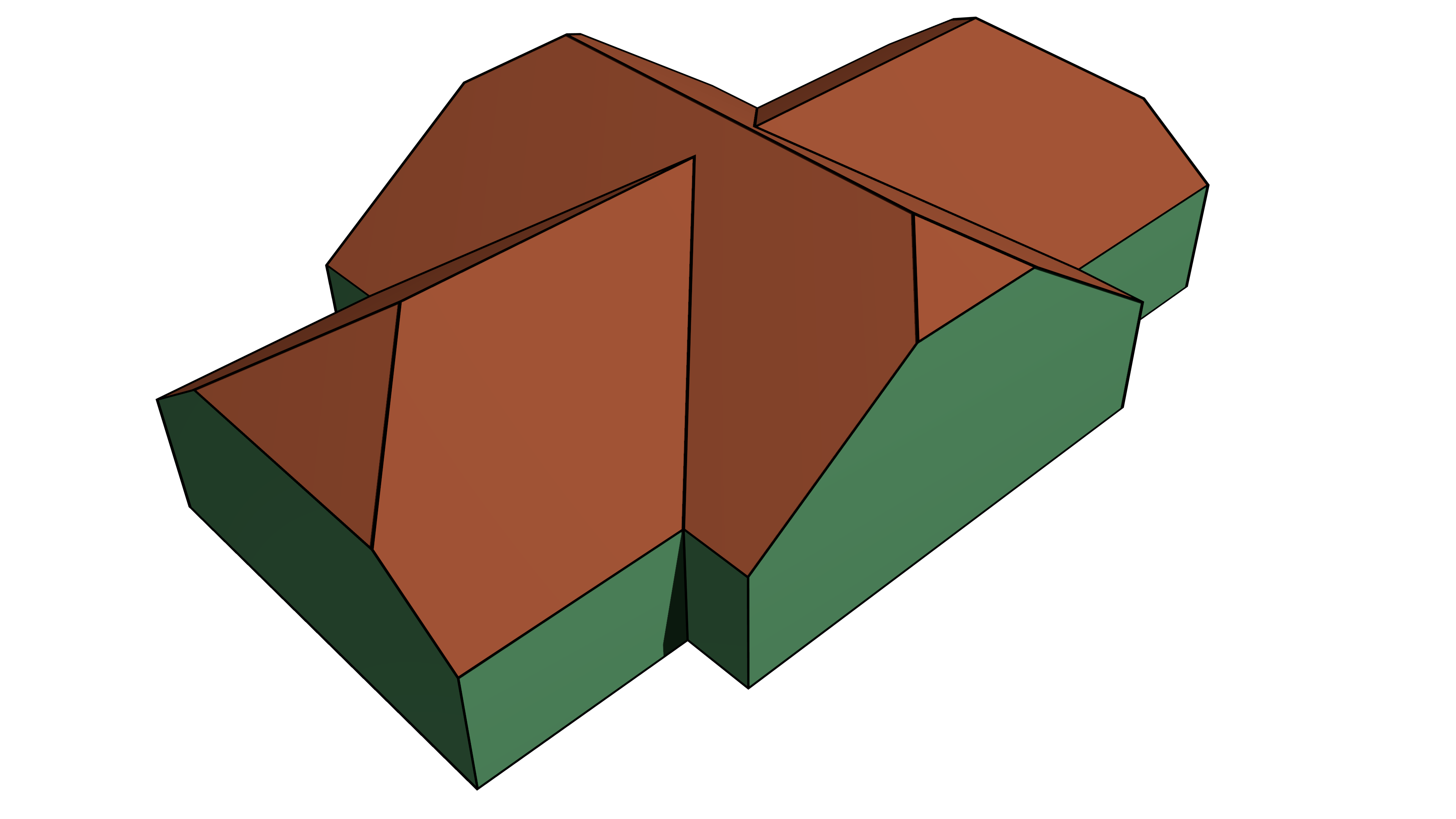

A house with a cross-gabled roof. The roof was constructed based on an additively weighted straight skeleton of the (exterior) footprint of the house. | |

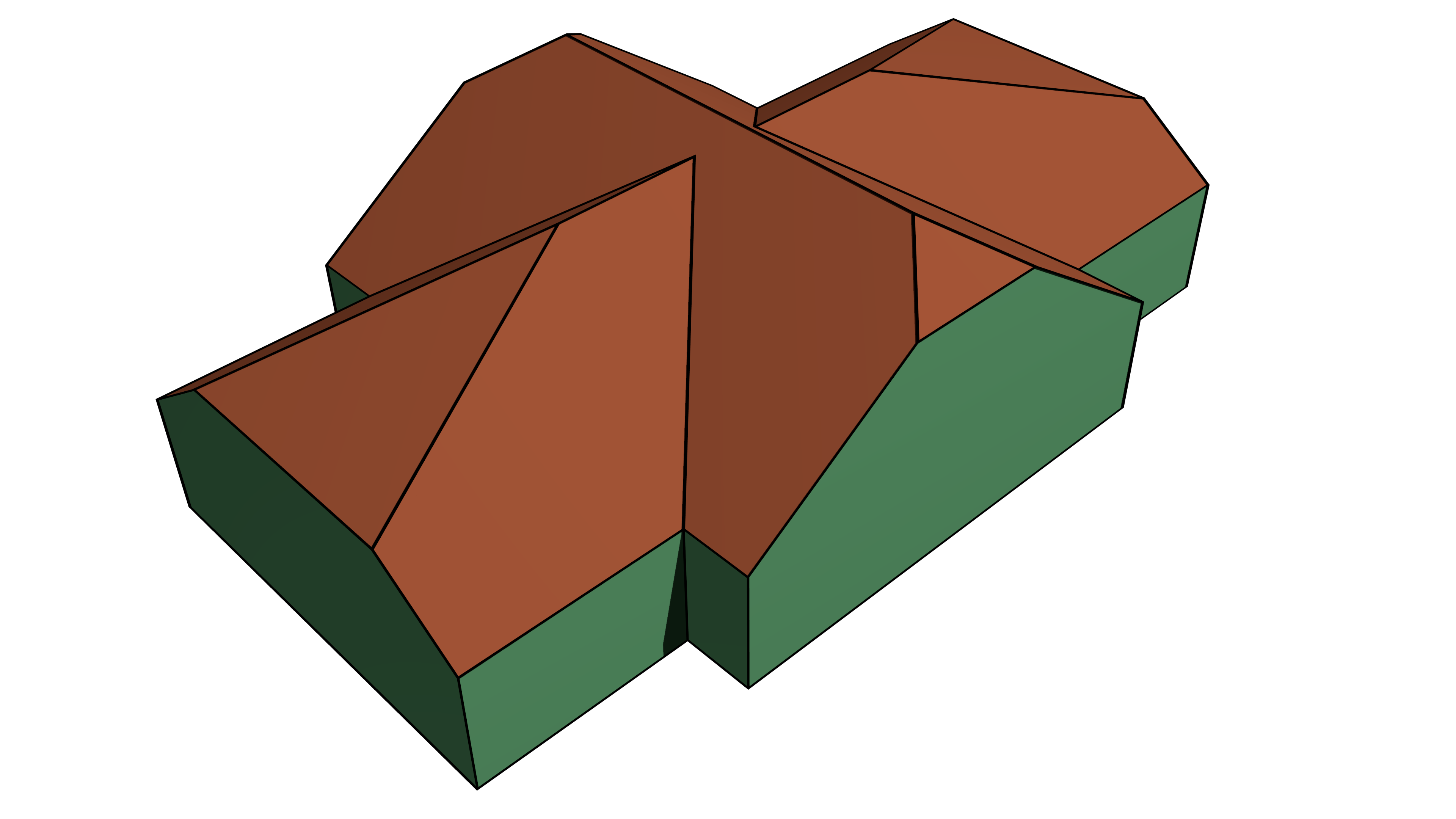

A house with a cross-gabled roof. The roof was constructed based on an additively and multiplicatively weighted straight skeleton of the (exterior) footprint of the house. | |
|

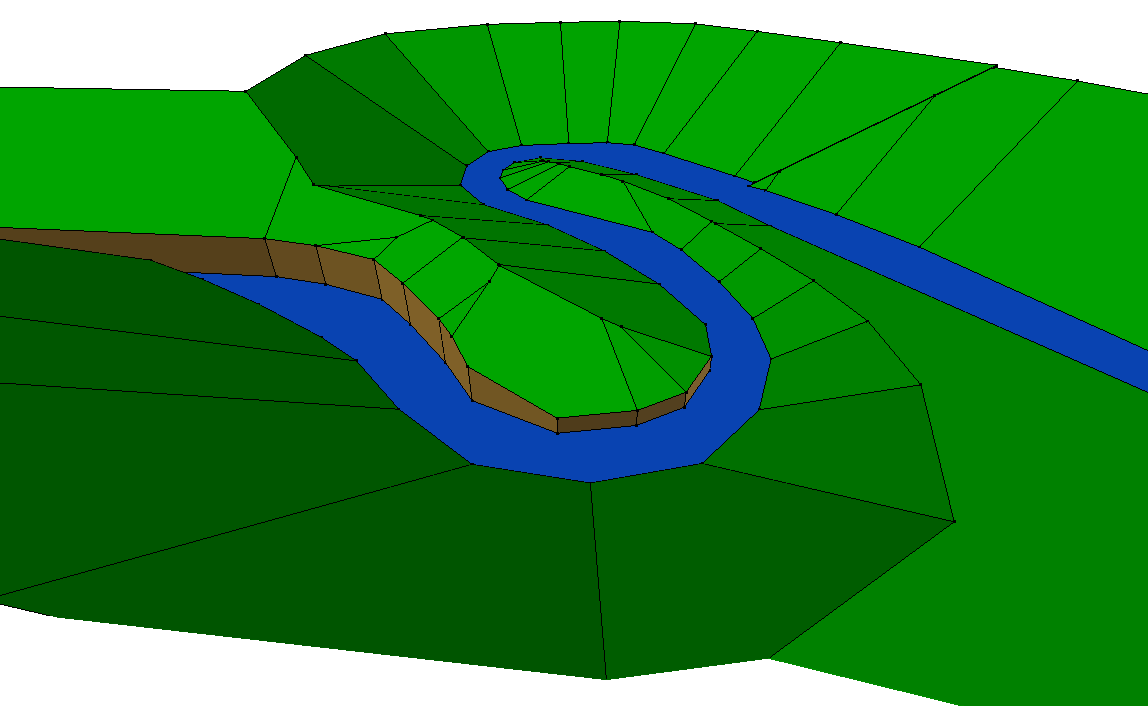

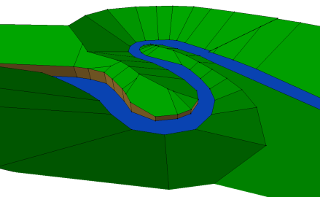

A terrain around a section of the Danube. The terrain was constructed based on an additively and multiplicatively weighted straight skeleton of the (exterior) footprint of the house. | |||
|

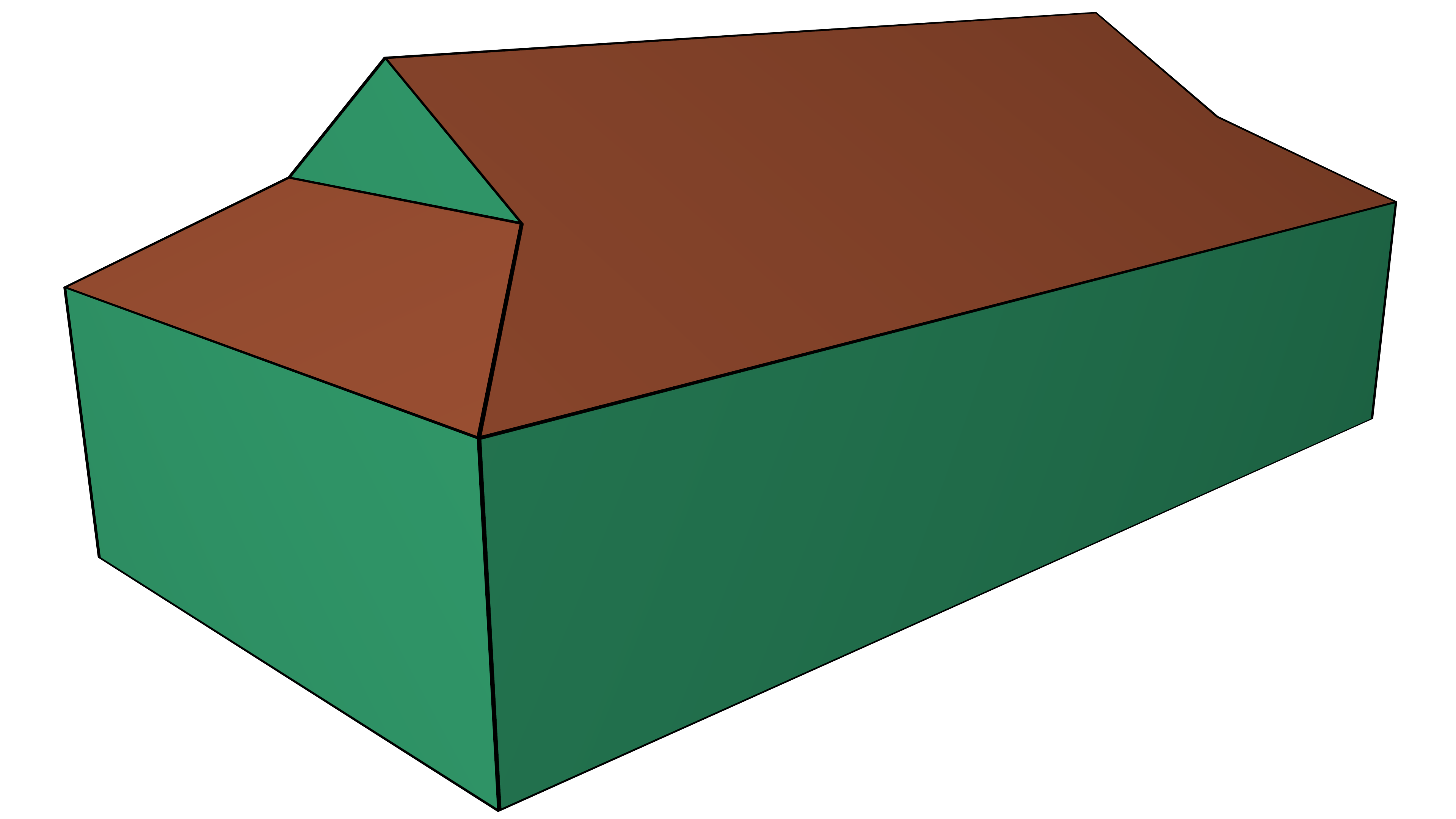

A gablet roof. The roof was constructed based on an additively weighted straight skeleton of the (exterior) footprint of the housel; the weights change over time. | |||
|

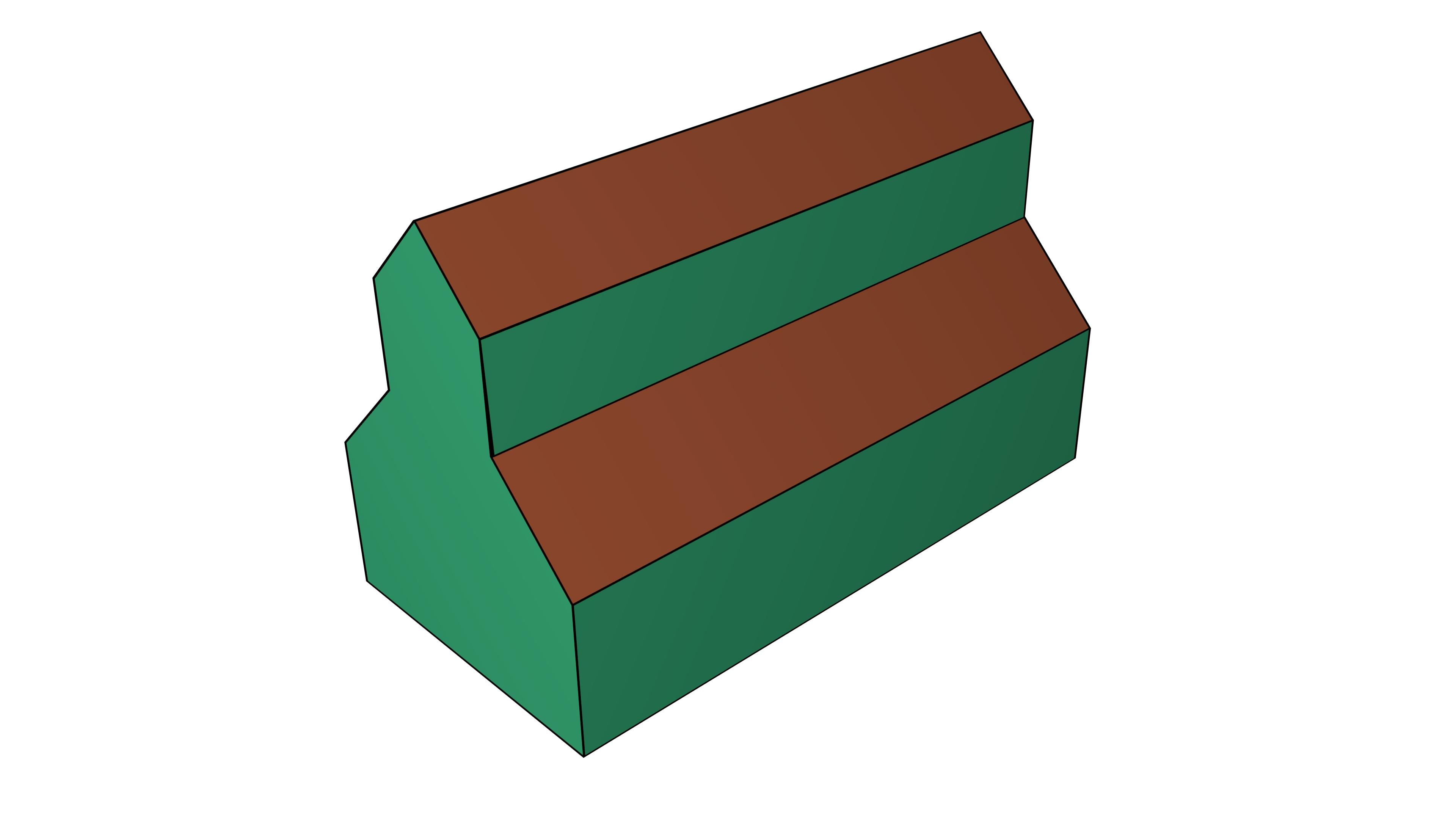

A clerestory roof. The roof was constructed based on an additively weighted straight skeleton of the (exterior) footprint of the house; the weights change over time. | |||
|

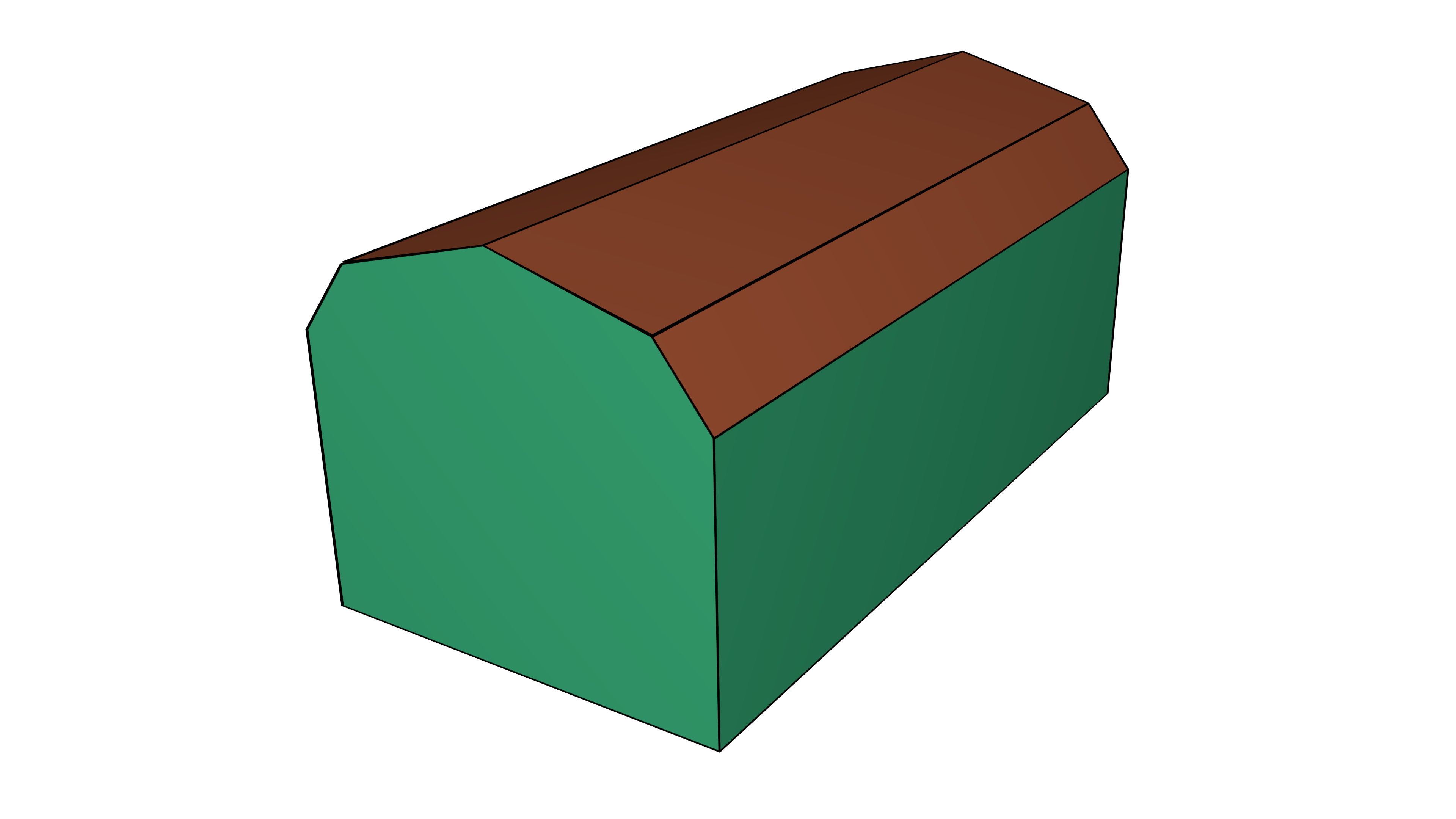

A gambrel roof. The roof was constructed based on an additively and multiplicatively weighted straight skeleton of the (exterior) footprint of the house; the weights change over time. | |||
|

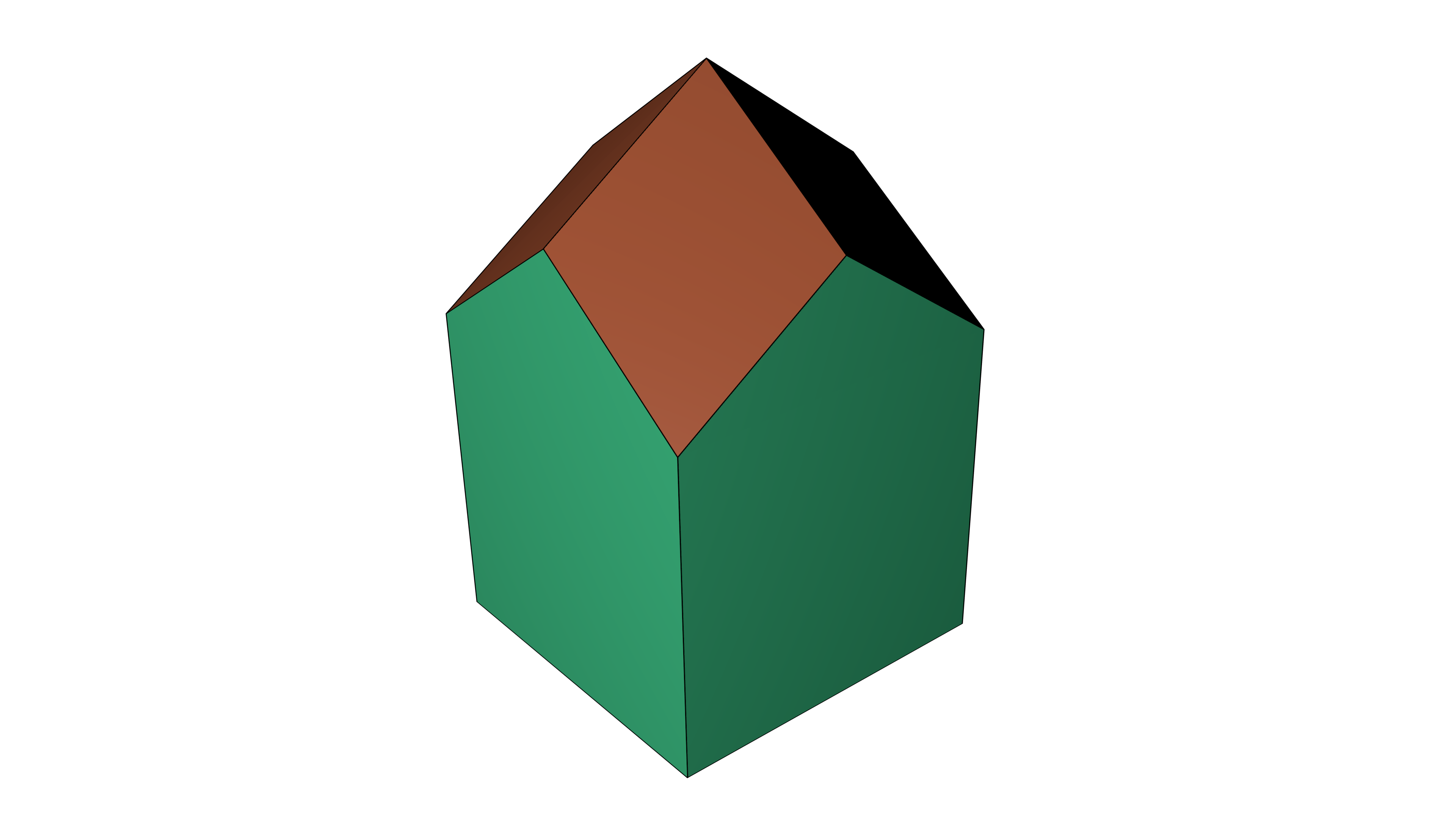

A rhombic roof. The roof was constructed based on an additively and multiplicatively weighted straight skeleton of the (exterior) footprint of the house. | |||
|

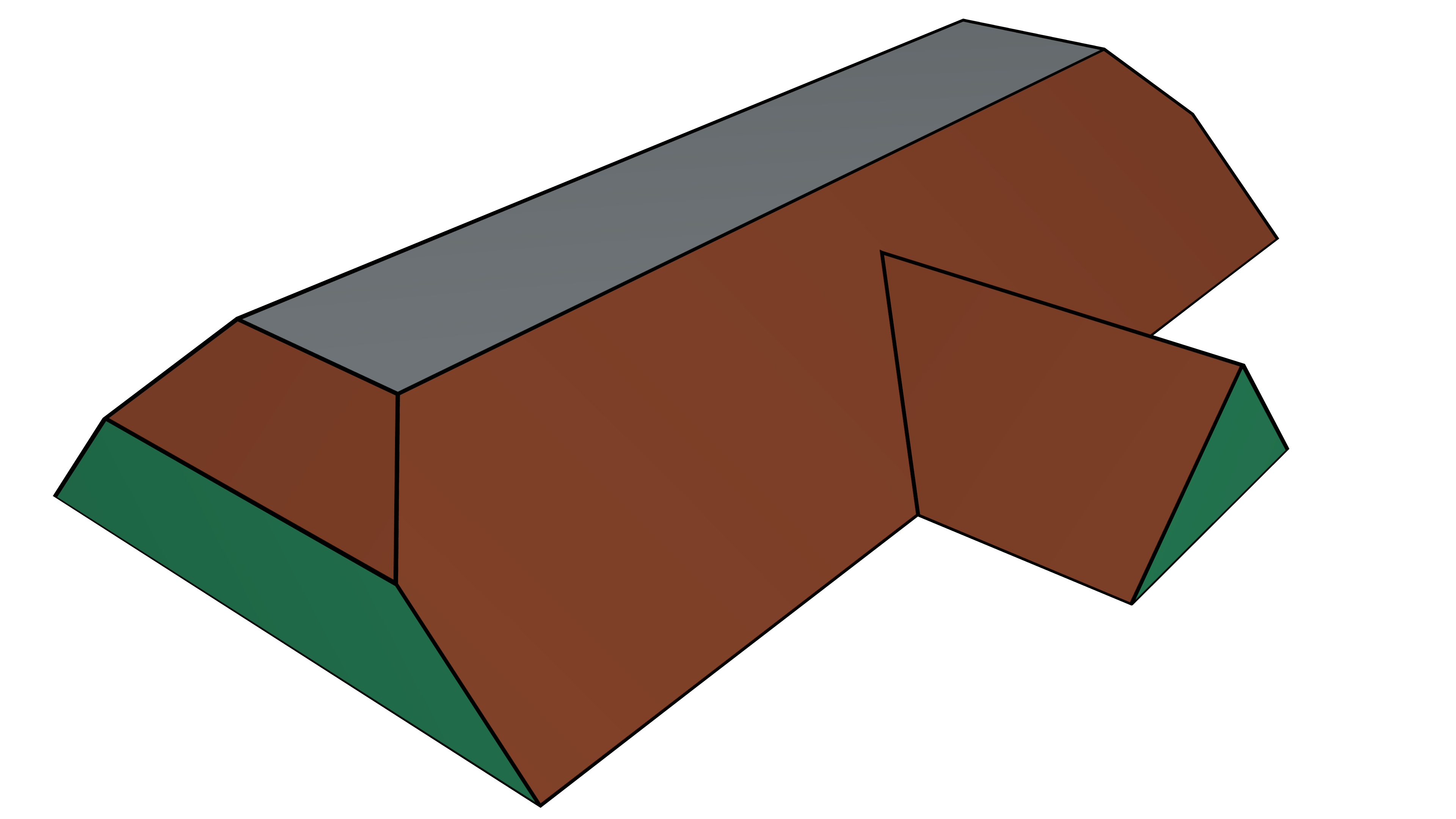

A flat-top roof. The roof was constructed based on an additively and multiplicatively weighted straight skeleton of the (exterior) footprint of the house; the weights change over time. | |||
|

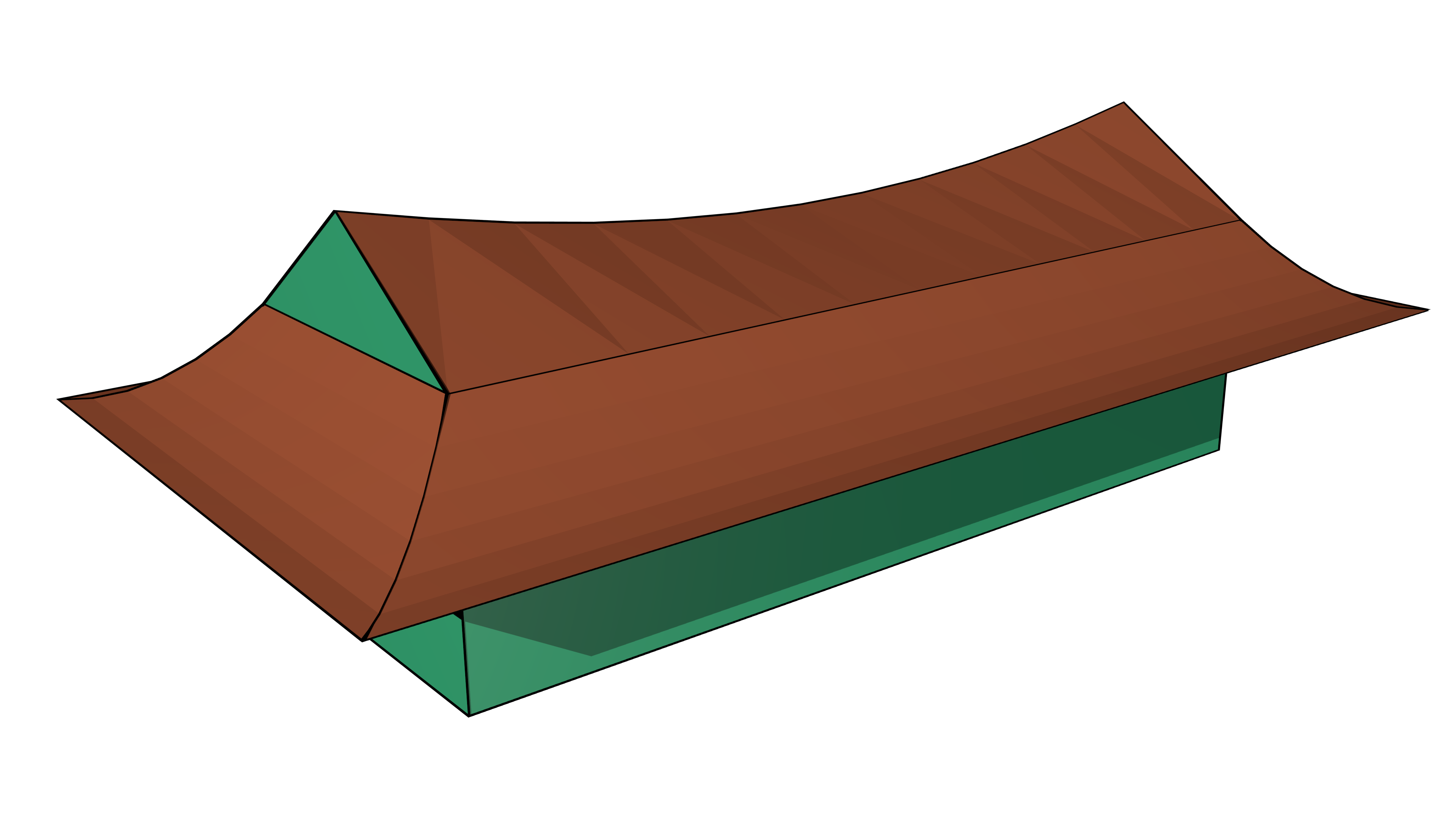

A roof of an Asian-style temple. The roof was constructed based on an additively and multiplicatively weighted straight skeleton of the (exterior) footprint of the house; the weights change over time. In a post-processing step, some straight-line ridges were replaced by curved arcs. |
